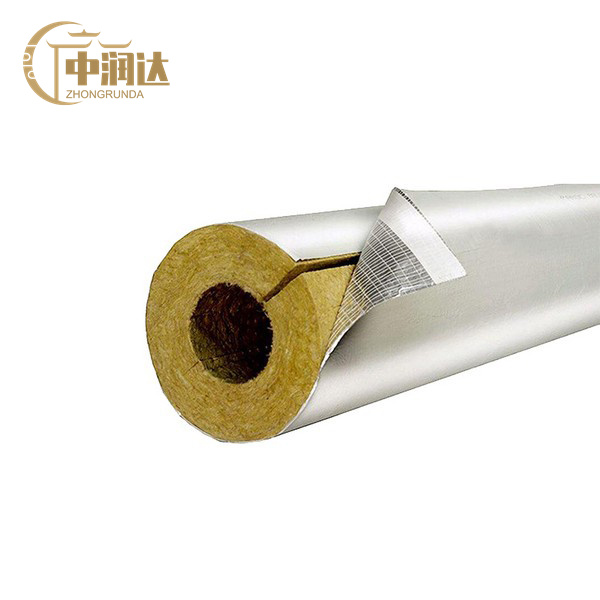

The rock wool fiber is rolled with a mold and formed by high temperature and solidification. For the convenience of installation, a unilateral slit is made along the axial direction of the shell, which is convenient for construction and can ensure that the shell is closely matched with the pipe that needs to be insulated. The outer surface of the shell can be polished according to customer requirements to ensure accurate and consistent insulation thickness. Hydrophobic and low-chlorine product can be produced according to requirements, and aluminum foil glass fiber cloth (ALGC) and other veneer materials can also be added to the surface.
|
Tube Diameter
|
Inside Diameter
|
Thickness(mm)
|
|||||||||||
|
mm
|
(“)
|
mm
|
25
|
30
|
40
|
50
|
60
|
70
|
80
|
90
|
100
|
120
|
150
|
|
15
|
1/2
|
22
|
●
|
●
|
●
|
●
|
|
|
|
|
|
|
|
|
20
|
3/4
|
27
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
|
|
|
|
|
25
|
1
|
34
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
|
|
|
|
|
32
|
1- 1/4
|
43
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
|
|
|
40
|
1- 1/2
|
48
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
|
|
|
50
|
2
|
60
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
|
|
|
65
|
2- 1/2
|
76
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
|
|
|
80
|
3
|
89
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
|
|
|
90
|
3- 1/2
|
108
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
|
|
|
100
|
4
|
114
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
|
|
125
|
5
|
140
|
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
|
150
|
6
|
169
|
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
|
200
|
8
|
219
|
|
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
|
250
|
10
|
273
|
|
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
|
300
|
12
|
325
|
|
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
|
350
|
14
|
356
|
|
|
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
|
375
|
15
|
381
|
|
|
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
|
400
|
16
|
406
|
|
|
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
|
450
|
18
|
456
|
|
|
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
|
475
|
19
|
483
|
|
|
|
|
|
●
|
●
|
●
|
●
|
●
|
●
|
|
500
|
20
|
508
|
|
|
|
|
|
●
|
●
|
●
|
●
|
●
|
●
|
|
550
|
22
|
558
|
|
|
|
|
|
|
●
|
●
|
●
|
●
|
●
|
|
600
|
24
|
610
|
|
|
|
|
|
|
●
|
●
|
●
|
●
|
●
|
Main Performance and Technical Indicators
|
Performance
|
PS110
|
PS120
|
PS140
|
Unit
|
Standard
|
|
|
Density
|
110
|
120
|
140
|
kg/m3
|
--
|
|
|
Thermal conductivity
|
5 0 C
|
≤ 0.039
|
≤ 0.039
|
≤ 0.039
|
W/(m•K)
|
GB/T 10295
ASTM C518
ASTM C177
|
|
1 0 0 C
|
≤ 0.044
|
≤ 0.044
|
≤ 0.044
|
|||
|
1 5 0 C
|
≤ 0.056
|
≤ 0.052
|
≤ 0.052
|
|||
|
2 0 0 C
|
≤ 0.072
|
≤ 0.063
|
≤ 0.061
|
|||
|
2 5 0 C
|
≤ 0.084
|
≤ 0.072
|
≤ 0.070
|
|||
|
3 0 0 C
|
≤ 0.095
|
≤ 0.081
|
≤ 0.078
|
|||
|
Maximum operating temperature
|
450
|
650
|
650
|
C
|
ASTM C411
|
|
|
Veneer material： 80
|
||||||
|
Heat load shrinkage temperature
|
400
|
600
|
600
|
C
|
GB/T 11835
|
|
|
Linear shrinkage
|
≤2
|
≤2
|
≤2
|
%
|
ASTM C356
|
|
|
Volume moisture absorption*
|
≤ 0.02
|
≤ 0.02
|
0.02
|
vol %
|
ASTM C1104 M
|
|
|
Hydrophobicity*
|
99
|
99
|
99
|
%
|
GB/T 10299
|
|
|
Chloride content**
|
≤ 10
|
≤ 10
|
≤ 10
|
PPM
|
ASTM C871
|
|
|
Combustion performance
|
Nonflammability A1
Smoke degree <25
Flame Spread <25
|
--
|
GB 8624
ASTM E136
ASTM E84
|
|||
|
Organic content
|
≤ 4.0
|
≤4.0
|
≤4.0
|
%
|
GB11835
|
|
|
Environmental friendly
|
Asbestos-free and free of CFSs, HCFCs and HFCs
|
--
|
--
|
|||
|
Corrosive
|
no corrosion
|
--
|
ASTMC665
|
|||

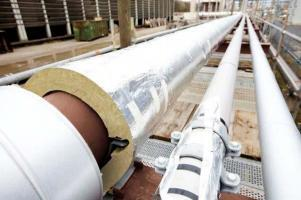

The vertical seams of adjacent IPS series products need to be staggered. The vertical and horizontal seams of two-layer IPS series products need to be staggered, and the distance between the staggered seams is recommended to be greater than 150mm;
Each IPS series product is fixed on the pipe by two steel bars at both ends, and the steel bars at both ends are more than 100mm away from the edge of the pipe shell;
